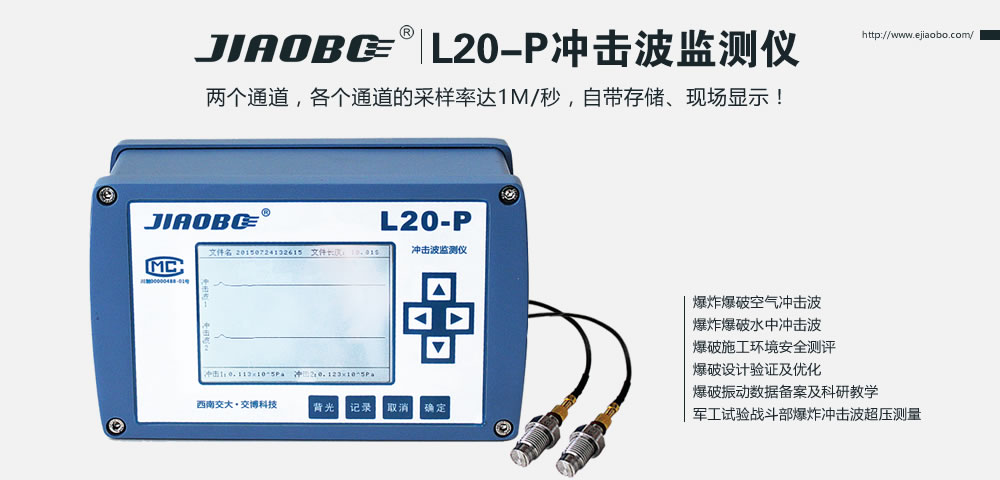

Blasting shock wave monitor L20-P【Universal】
It is a portable detection device designed for explosion and high frequency impact signal testing. The instrument has 2 independent channels, each channel can sample up to 20M Hz, and the sampling interval is fine to 0.05 & mu;s, making any instant The impact signal can be well identified and recorded. At the same time, the instrument has a built-in microcomputer and a large-capacity lithium battery pack, which can independently perform various inspections at the test site.

First, the applicable field

[1]. Air shock wave detection

Assessment of the safety of adjacent buildings, facilities, equipment and personnel by air blasting induced by open surface blasting and surface bare blasting. Vibration monitoring of blasting construction in underground, open and demolition

[2]. Detection of shock wave in water

Assessing the impact of underwater shock waves caused by underwater blasting on the construction (structure), breeding area and wildlife of the blasting area

[3] Explosion shock wave detection

Quantitative analysis of the explosion power and explosion damage of large military warheads such as mines and torpedoes

Second, advantages and characteristics

	Portable It integrates hardware such as liquid crystal display, high-speed capture card, embedded computer, large-capacity electronic hard disk, lithium battery pack, etc., and can independently complete various test tasks.			high speed The sampling frequency of each channel is as high as 20 M SPS, and the sampling interval is fine to 0.05 & mu;s at the time of signal collection. The impact signal of any moment can be well recognized and recorded.

	Easy to use Dedicated function keys and intuitive menu-driven operation are quick and easy to set up, even for inexperienced personnel			Expansion The standard Windows software provides sensor configuration and the monitor can be integrated with any voltage or charge sensor.

	Visible After each event, the operator can immediately view the overpressure peak and positive pressure time through the onboard LED screen.			Safety Aluminum alloy casing with pressure and shock resistance to ensure long-term trouble-free service in the harshest harsh environment

First, the function

Shock record

1．Level mode

data collection

1．On-site U disk high-speed access

2．Instrument connected to computer

3．LAN access

Signal analysis

1．Impact safety distance estimate

2．Overpressure peak / dynamic pressure peak / negative pressure peak, etc.

Monitoring report

1．Waveform briefing

2．Shock wave safety judgment report

Other functions

1．Support local calibrator zero

2．Upgrade and maintain the system through a USB flash drive

3．Synchronize clock with computer

4．Compatible voltage, ICP sensor

Second, performance

Performance

Channel: 2 channels, standard air shock wave sensor (optional underwater shock wave sensor)

Range: optional range1MPa/2MPa/5MPa/10MPa

Precision：±5%

Measurement frequency: greater than 200KHz

Time accuracy：0.0000005ms (20M sps)

Waveform record

Record mode: manual, single, loop

Sampling Rate：1Msps/2Msps/5Msps/10M/20Msps

Trigger level: 1%~100%, multiple files can be set

Record stop: fixed record duration

Recording time：0.5s/1s/2s/3s/4s??

Negative delay：10ms

Storage capacity: 400 files with a duration of 4 seconds?

Physical parameter

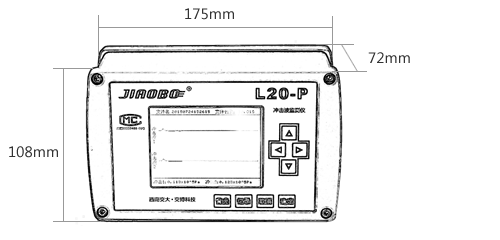

size：175mm*108mm*72mm

weight：1.28kg

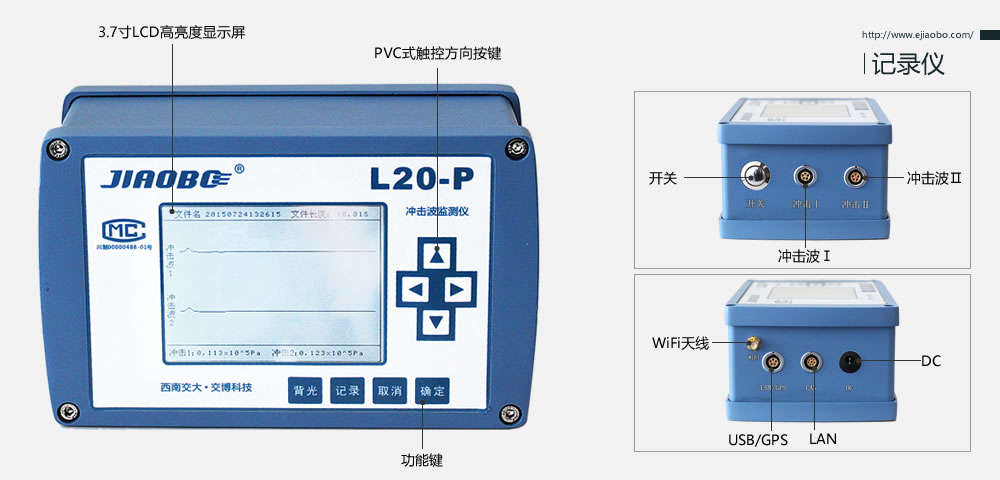

Display: 3.5 inch LCD screen, feature value, waveform display;

Battery: 7.4V lithium battery, working continuously for 3 days;

Button: 6 touch buttons,

Output interface: USB2.0 interface and Rj45 network port

Use environment：-30~75 ℃，90 ％ RH

Protection level：IP57

Warranty: Warranty period

First, the standard list

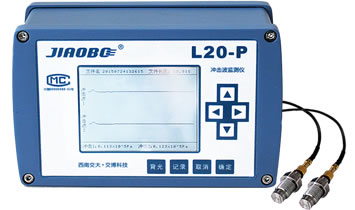

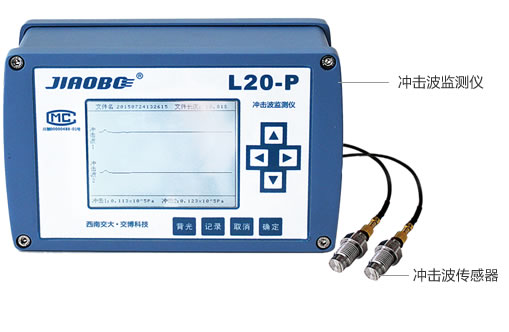

L20-P type shock wave monitor
0.2MpAir shock wave sensor

Power adapter
Special protective box

Shielding signal line, network line, and multi-function data line

CD or U disk contains client installation package, operation tutorial

One copy of the manual, warranty card, certificate of conformity, and factory inspection report

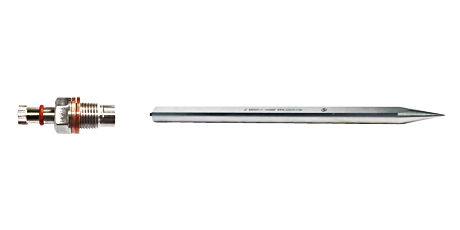

Second, the sensor selection
The Windows version software of the L20-series monitor provides sensor configuration function, so that any one of the optional sensors can be perfectly integrated with the monitor; therefore, the blasting safety monitoring should be based on the characteristics of the blasting and the observation point. Sensors are selected for factors such as the type of environment and the type of protection to meet customer monitoring needs.

Model / Type	KD2004GL	KD2002L
Range	1MPa、2MPa、5MPa	1MPa、5MPa、10MPa
Resonant frequency	～200KHz	～200KHz
Rise Time	～2us	～1.5us
Size installation	Φ12.8×38mminstallationM10×1	Φ22.3×410mm，Clamp
Characteristics	IEPE, micro pressure	Pen type、IEPE
other	Waterproof type can be customized according to needs	Waterproof type can be customized according to needs
Use way	Suitable for routine blasting shock test, waterproof sensor for underwater blasting impact test	Applicable to scientific tests such as special explosive test operations, military engineering, and chemical explosion tests

Field of application

[1]. Air shock wave detection

[2]. Detection of shock wave in water

Assessing the impact of underwater shock waves caused by underwater blasting on the construction (structure), breeding area and wildlife of the blasting area

[3] Explosion shock wave detection

Quantitative analysis of the explosion power and explosion damage of large military warheads such as mines and torpedoes

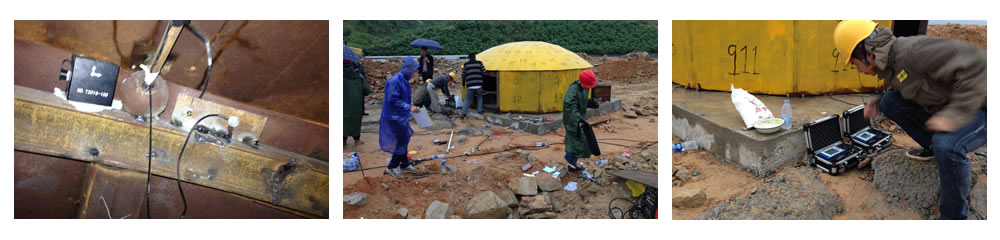

Typical application 1: explosion test in steel mesh structure
In mid-October 2016, at the request of a university experimental center, our company sent a staff to Fujian Ningde for the explosion experiment of steel mesh shell structure, testing the site, using the L20-P blasting shock wave monitor produced by our company, measuring TNT Explosion of the explosive in the steel reticulated shell structure, vibration and shock waves of the shell;

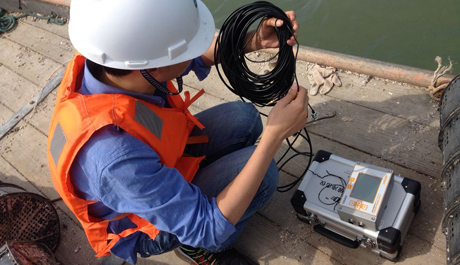

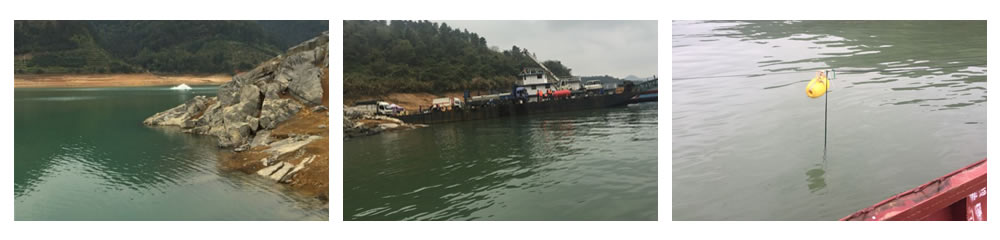

Typical application 2: underwater shock wave test
In 2017, a monitoring unit in Fujian monitored the impact of shallow sea reef operations on the sensitive fish in cage fisheries. Using the L20-P blasting shock wave monitor, the underwater sensors were placed on the cage to obtain each explosion. Blasting shock wave data for reef operations to guide blasting construction and provide safety for fishery sensitive fish

Installation and use

Before the blasting field test, the user turns on the power of the instrument after fixing the sensor, and completes the parameter setting through the on-board touch button and display screen to start the acquisition and then leave the scene, and the instrument enters the working state. When the blasting vibration signal is transmitted, the system will automatically record and store the entire dynamic waveform. The tester will use the U disk to take the number or use the computer with the client software to establish communication with the instrument to manage, analyze and report the stored files. Production.

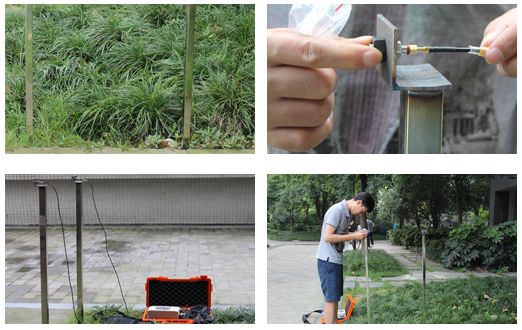

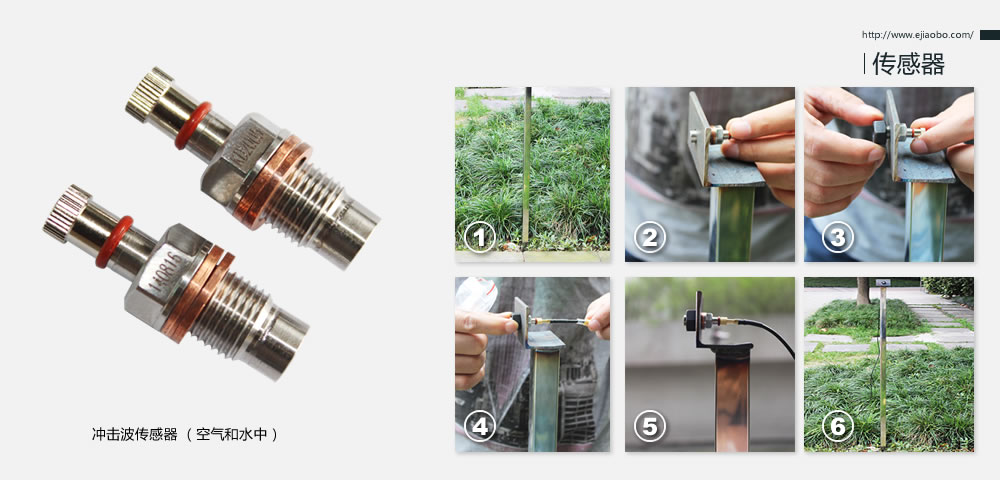

Air Shockwave Installation:

1、Fixed sensor bracket, sensor mounting point 1.2 meters from the ground;

2、The shock wave sensor is fixed by a nut, and the sensor points to the explosion surface;

3、Connect the host and sensor according to the test requirements;

4、Protect the equipment to avoid damage to the monitor due to impact;

Measurement and calibration

After the rigorous measurement by the Beijing Aerospace Measurement and Testing Institute, the air shock wave or water shock wave "test report" is obtained. The data of the L20-P type shock wave detection is accurate and traceable to the national benchmark.
