爆破测振仪L20-N爆破测振仪在中测院国家基准下的测试波形

Time：2017-02-13 Views：
       L20-N型爆破测振仪在成都中国测试技术研究院大邑国家测试基地进行低频振动测试，检测员使用低频振动套组分别给了1Hz、2Hz、3Hz、10Hz、20Hz、40Hz等标准低频信号对L20-N型测试系统进行了测试，结果表明L20-N型爆破测振仪的传感器是满足测试1Hz的振动信号的。所测波形图如下：

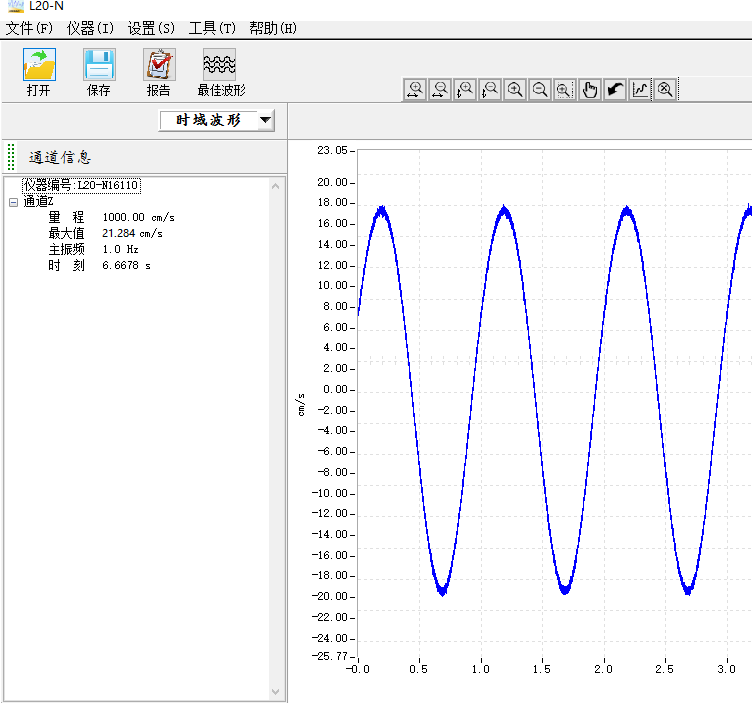

1Hz时，L20-N的测试波形图


2Hz时，L20-N测试波形图


3Hz时，L20-N测试波形图

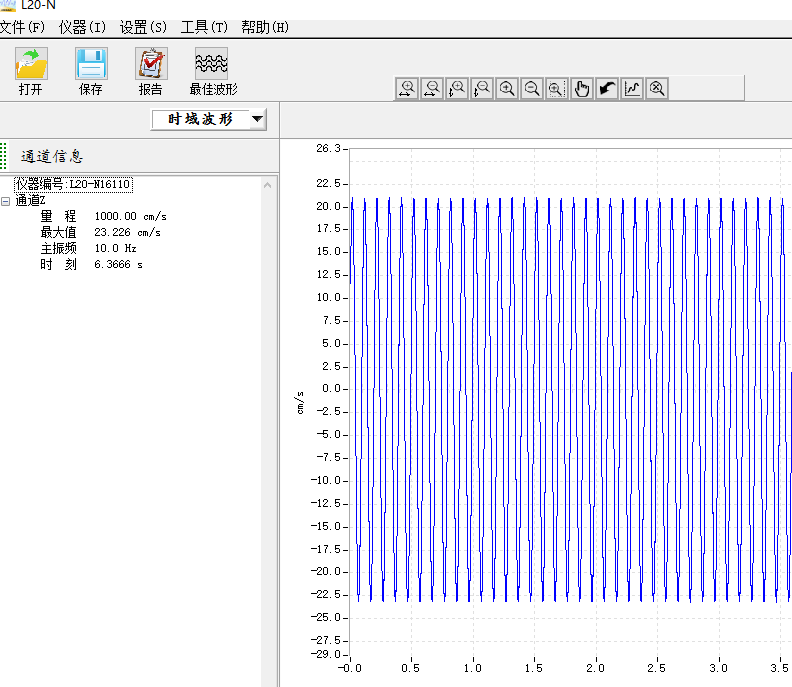

10Hz时,L20-N测试波形图

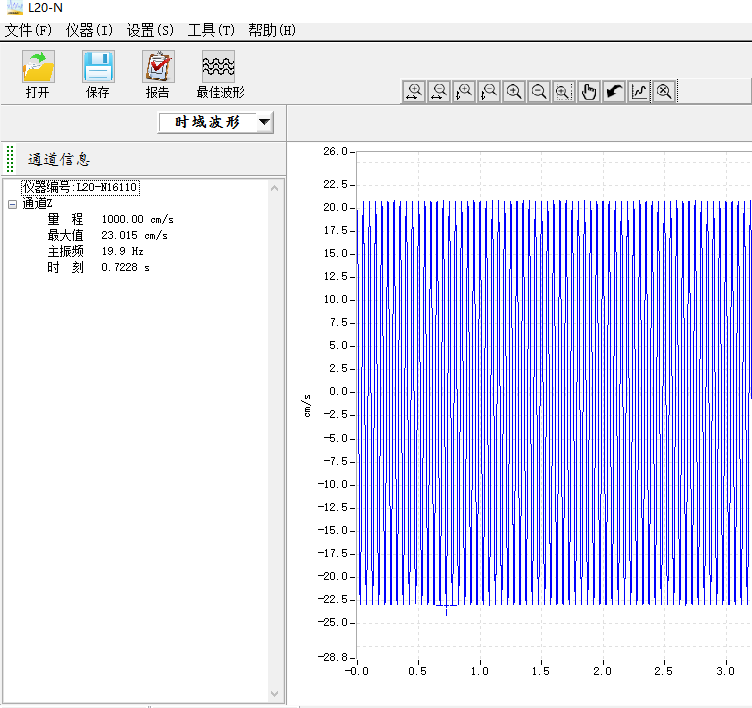

20Hz时，L20-N测试波形图

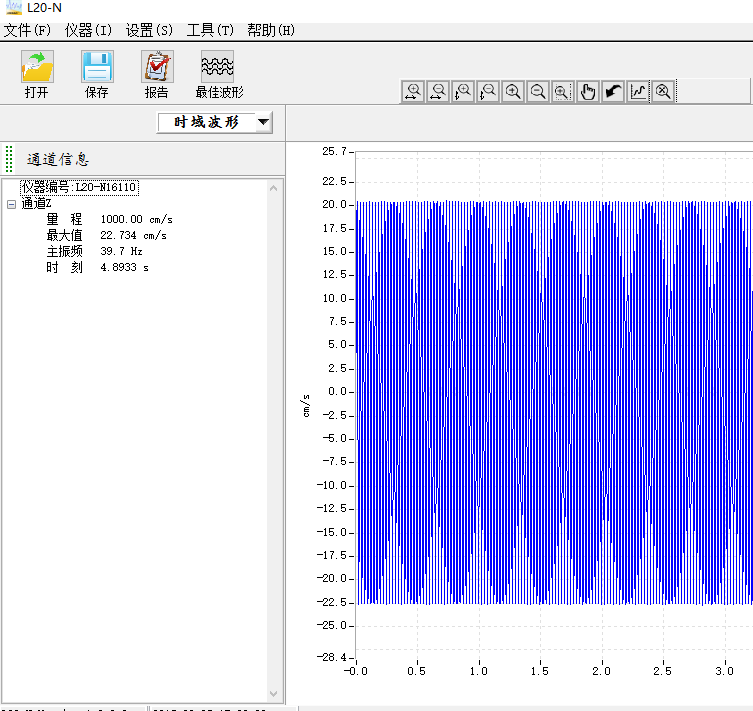

40Hz时，L20-N测试波形图
